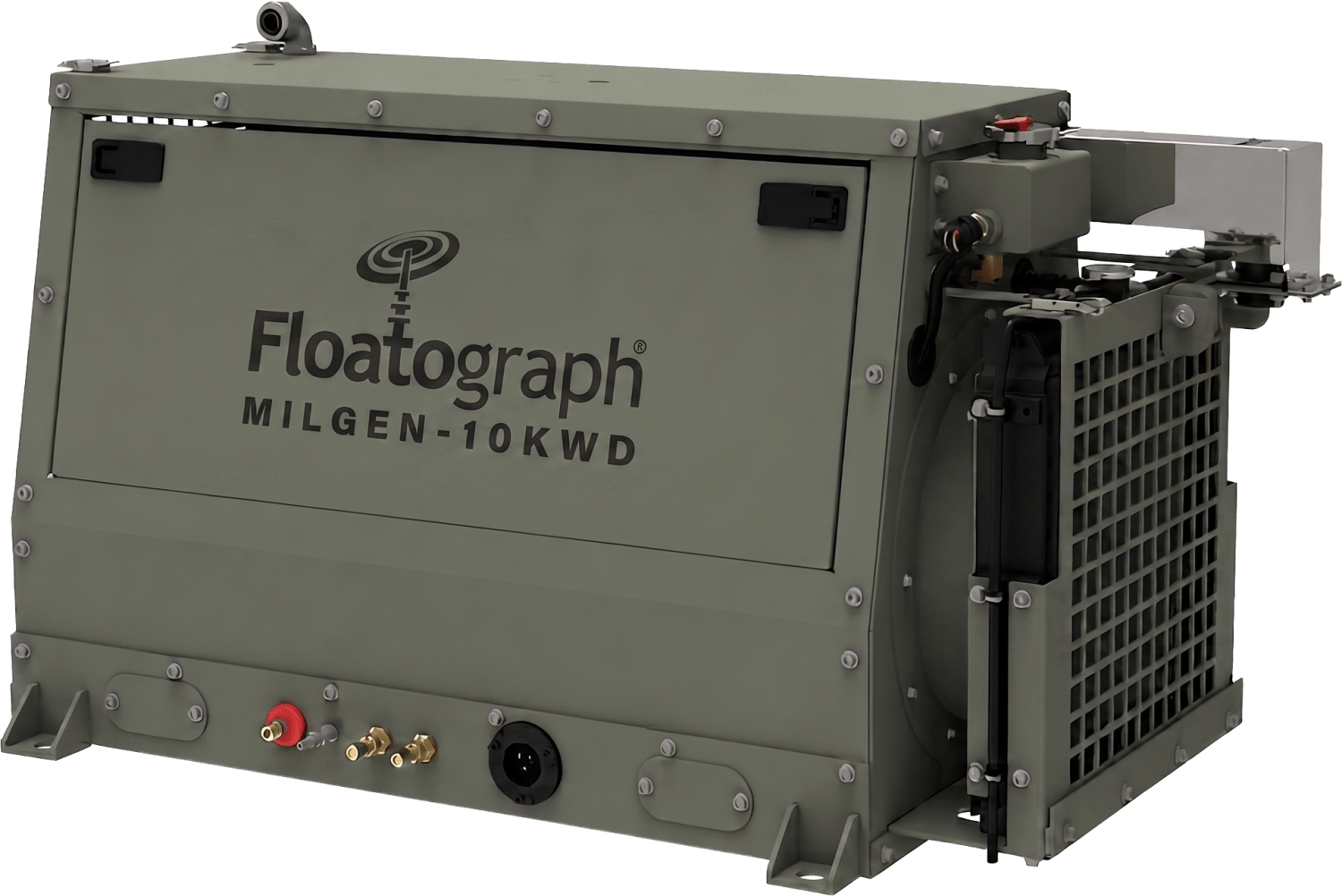

MILGEN™ Military Generator Systems
10kW & 12kW Rugged Diesel Power Solutions
The Floatograph MILGEN™ Series delivers dependable off-road power designed for military, utility, telecommunications, surveillance, and remote infrastructure applications.
Engineered for integration with Floatograph TXE and TCE series trailers, the MILGEN platform can also be incorporated into customer-provided systems and mobile platforms.
Engineering Overview
Specifications
| Output Power | 10kW or 12kW |
| Fuel Type | Diesel |
| Frequency | 60Hz (US) or 50Hz (EU) |
| Length | 58 in. |
| Height | 29 3/8 in. |
| Voltage | 120/240V, 1-Phase (Standard) Other configurations available |
| Application | Military, Utility, Telecom, Surveillance |
| Mounting Options | Trailer, Skid, Shelter, Vehicle Integration |
| Operating Temp. | -20°C to 50°C (-4°F to 122°F) |
| Control System | Digital Control Panel with Monitoring |
| Certifications | Designed to meet MIL-STD-810 reqiurements |
Typical Applications
- Rapid Deployment Mast Systems
- Border Surveillance
- Remote Utility Operations
- Telecommunications Infrastructure
- Disaster Recovery Operations
- Mobile Command Centers
- Critical Infrastructure Support
